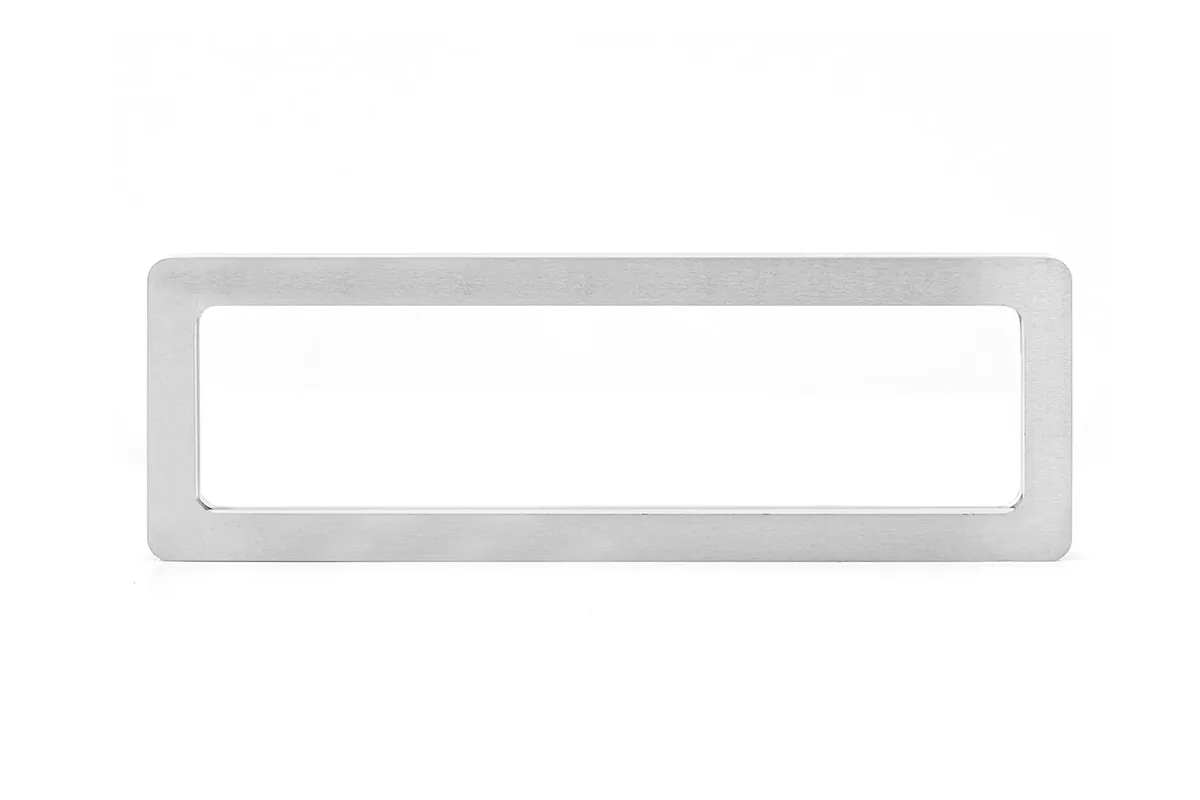

Window s203 screws
Precisely cut from a single sheet of stainless steel, the window frames harmonize perfectly with modern garage door panels. Their greatest advantages are a smooth surface without visible joints and exceptional durability. The 316L stainless steel used is corrosion resistant, making it an ideal material for outdoor applications.
Different types of glazing available
Better thermal insulation of the door
Minimalist, simple design
Resistant to adverse weather conditions
Airtightness and water resistance
Technical data
Panel cut-out dimension
180 x 588 mm
External frame dimension
200 x 610 mm
Suitable for panel thickness
40 mm
Mounting method
screws
Frame colours available
outer frame: brushed steel
inner frame: white
Frame material
outer frame: brushed stainless steel type 316L
inner frame: ASA plastic
Glazing type
Triple glazing made from clear or satin SCRATCH FREE sheets
Thermal transmittance coefficient
2,83 W/m²K
Weight
1,62 kg
