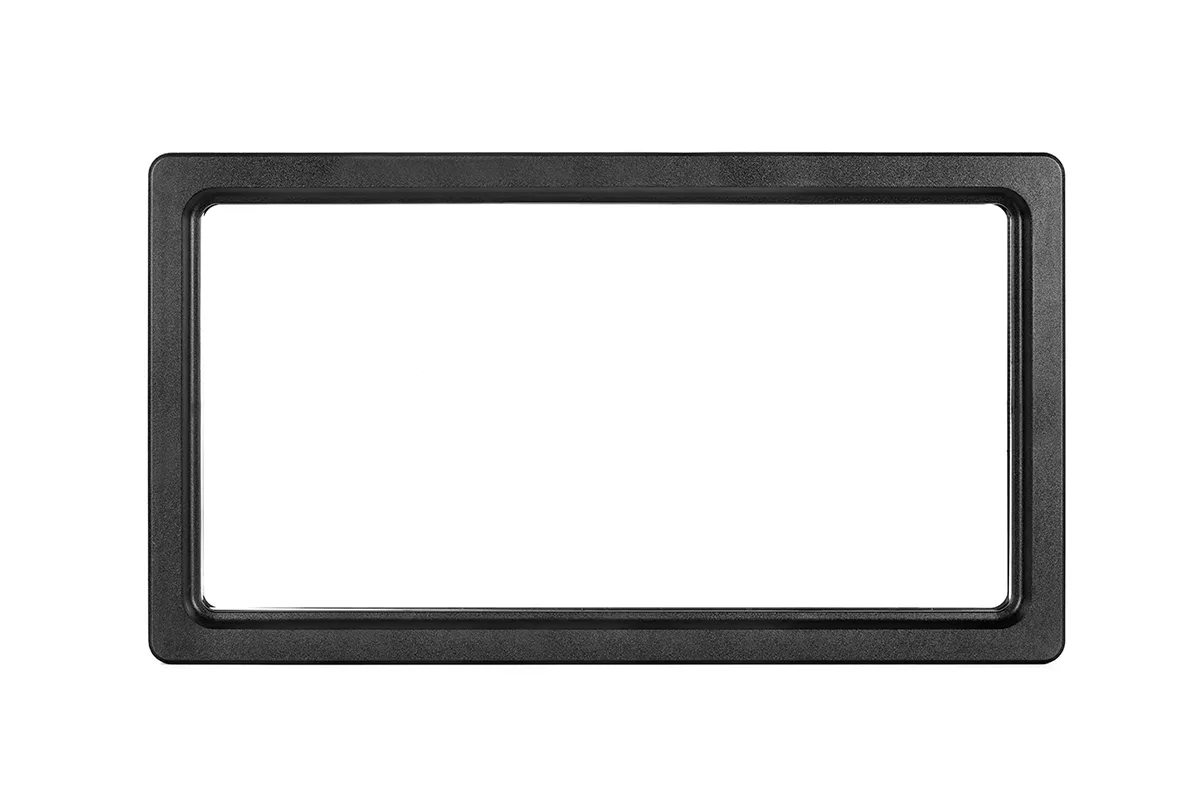

Window i430 clips

Window i430 clips

Large and easy to install windows, available in various types of glazing. They perfectly light up the interior – the PMMA variant transmits as much as 92% of light, matching the glass. They are airtight and resistant to weather conditions, ensuring durability and functionality.

Icon easy installation

Easy installation on clips

Icon Various types of glazing

Different types of glazing available

Light transmittance icon

As much as 92% light transmittance

Icon better thermal insulation

Better thermal insulation of the door

Icon minimalist design

Minimalist, simple design

Icon weather-resistant

Resistant to adverse weather conditions

airtightness and water resistance icon

Airtightness and water resistance

Technical drawing Window i430 clips

Technical data

Panel cut-out dimensions
405 x 745 mm

External frame dimensions
430 x 770 mm

Suitable for panel thickness
40, 42, 52 mm

Mounting method
clips

Standard frame colours available
black (RAL 9005)

Frame material
black – ABS

Glazing type
40-50 mm panel: double PMMA (2 x PMMA),
Glazing available in various colours (satin, grey, smoked, milk), textures (SAN Porex or PMMA Bark), in scratch-resistant SCRATCH FREE versions (clear, satin and black), and with increased impact resistance (PC).

Thermal transmittance coefficient
2,52 W/m²K

Weight
4,10 kg

See also

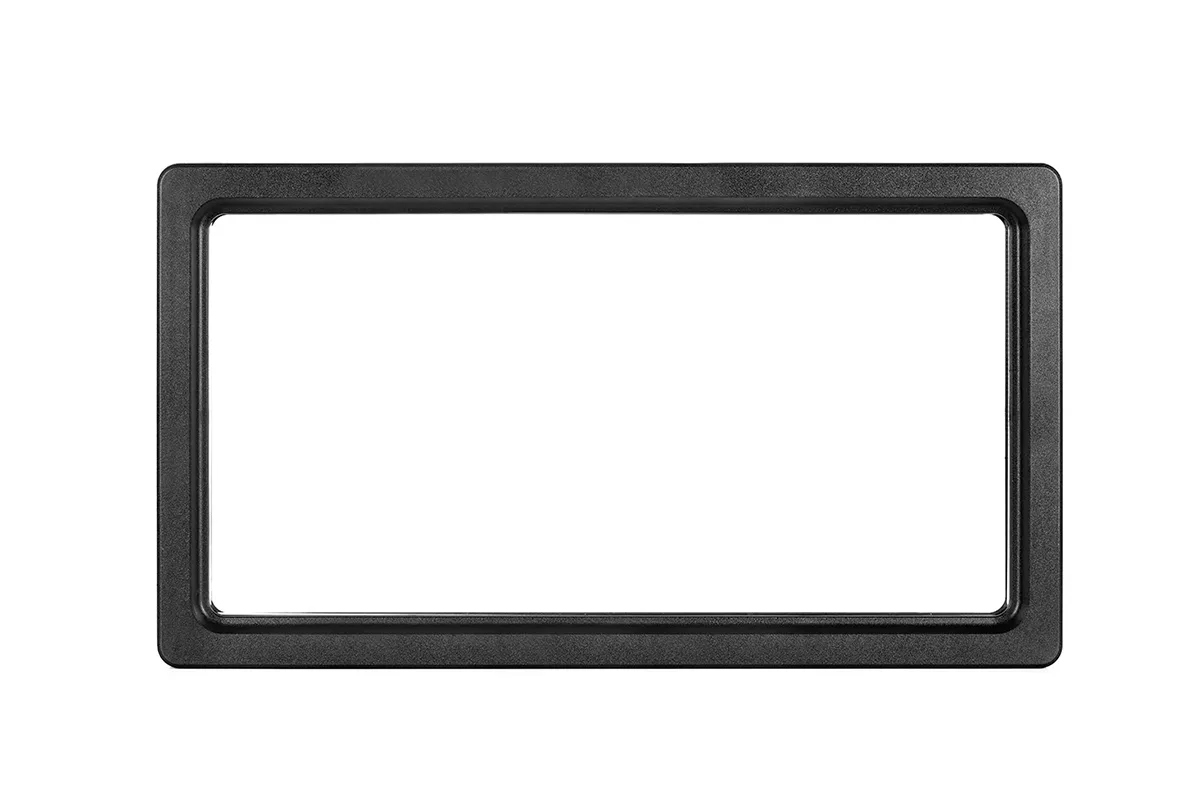

Window i430 screws
