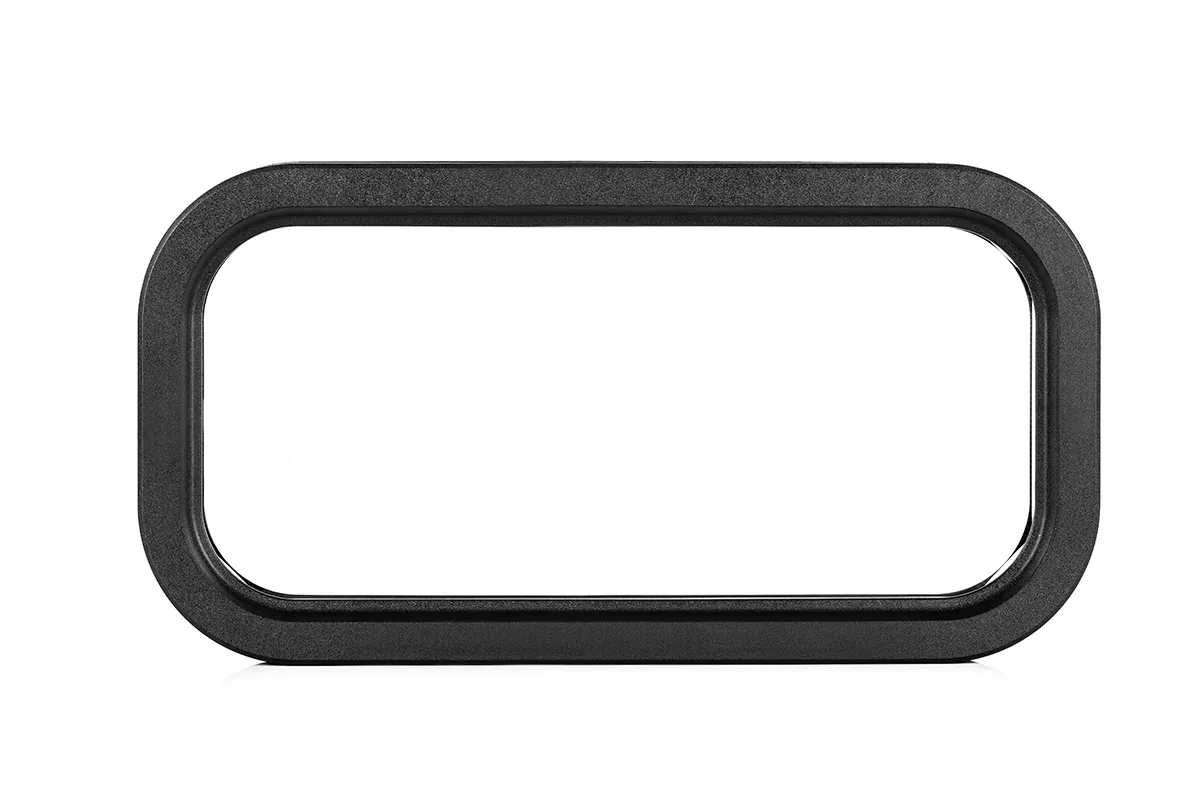

Window i345 screws
Functional window for industrial doors, resistant to UV factors. Screw fixing allows easy disassembly in case of replacement. Different types of glazing (colours/textures) are available, and the light transmittance for a PMMA window is as much as 92%. The use of windows with a triple insert provides better thermal insulation.
Easy installation on screws
Different types of glazing available
As much as 92% light transmittance
Better thermal insulation of the door
Minimalist, simple design
Resistant to adverse weather conditions
Airtightness and water resistance
Technical data
Panel cut-out dimensions
320 x 640 mm
External frame dimensions
345 x 665 mm
Suitable for panel thickness
40, 42, 50, 80 mm
Mounting method
screws
Standard frame colours available
black (RAL 9005)
Frame material
black – ABS
Glazing type
40-50 mm panel: double PMMA (2 x PMMA),
52-80 mm panel: triple PMMA (3 x PMMA)
Glazing available in various colours (satin, grey, smoked, milk), textures (SAN Porex or PMMA Bark), in scratch-resistant SCRATCH FREE versions (clear, satin and black), and with increased impact resistance (PC).
Thermal transmittance coefficient
2,54 W/m²K
Weight
1.10 kg (for a 40 mm panel)
2.30 kg (for 80 mm panel)
